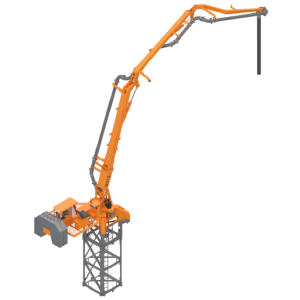

Spider Placing Boom

B-Series Outstanding Features

“Slip-ring” mechanism to provide infinetely slew turn. No need to care about positioning the starting point of operation
Detachable structure with “easy-split” boom through a single pin connection allows most versatile use of the equipment especially when the crane capacity to hold is limited
Ballast boxes are provided as standard; no need of preparation of the ballasts, the equipment is just ready for “plug-in and run”
Heavy-duty slew gear is standard to provide stronger and long lasting service life compared to the worm-gear trains

B-Series Catalog

B 21

Main Specification
3-elements boom with raised tail frame
21 m horizontal reach

B 308 – 312 – 15 – 17 – 18

Main Specification
3-elements boom
8 to 18 m horizontal reach

B 212

Main Specification
2-elements boom
12 m horizontal reach

Outstanding advantageous features of the Atabey Spiders

Heavy Duty Slewing Gear

Atabey B-Series concrete distributors have heavy duty rotation gears integrated with the reducer gearbox.

The system is much more reliable compared to commonly used worm gear reducers.

True Infinite Rotation Ability

There is no limit to the number of turns on our B-Series machines. All other brands have a limited number of spins.

And they claim that when their machine makes a full rotation (360º), it is an “infinite rotation”, the true endless rotation system is only available in Atabey B-Series.

Emergency Hand Pump

Emergency hand pump is standard in all Atabey B-Series equipment. Never stop pouring concrete; even in the event of a power cut, you can finish the concrete pouring with a manual hand pump.

There is no “cold joint” problem with Atabey B-Series.

Mobile Column Design System (Optional)

It is a unique feature in the market. This option provides easier application in projects with many walls and columns that cause positioning limitations in floors.

Unlike the self-rising column system, this is a mobile system that allows one unit to be used in several buildings and locations on the same job site.

During the construction phase of the world’s largest cathedral in Bucharest/Romania, this option played a key role in solving the concrete casting requirements.

We Made The B Series Mobile With The Card System

Another unique solution from Atabey! This trolley system is ideal for mobilization when tower crane access is limited on floors.

It has four hydraulic struts and 2 drawbars (front-rear), each of which can steer the car.

Available in drawbar towing or self-propelled (4×2 or 4×4 driven hydrostatic power draw) versions.

Ready Balance Stone Pattern

Quick installation with ready-made balance stone molds supplied with the equipment. Just fill the concrete and get started; In Atabey B-Series, formwork etc. to construct ballasts.

There is no need to do it. What do competitors do?

They only provide drawings of the ballasts. Before starting concrete pouring, the customer must carry out a preparatory work to obtain the necessary ballasts.
